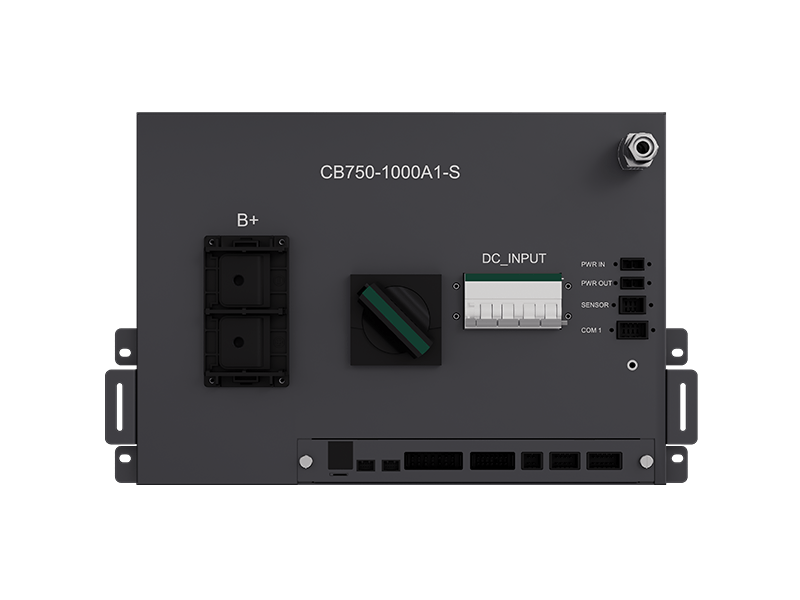

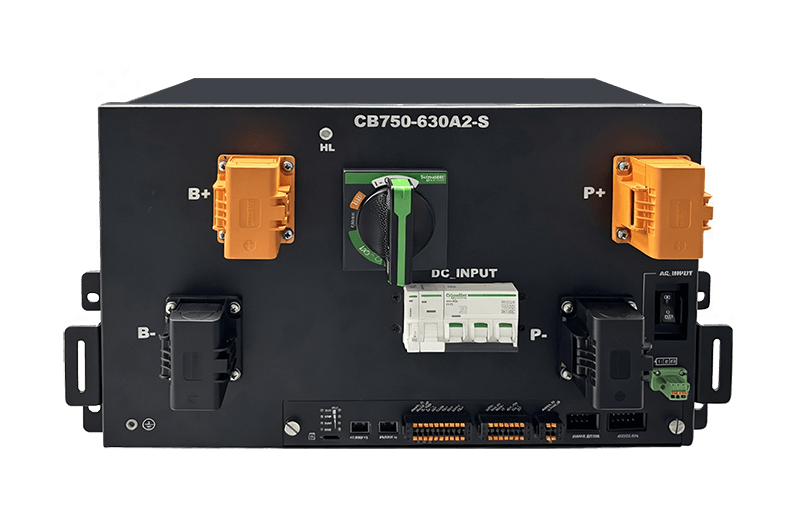

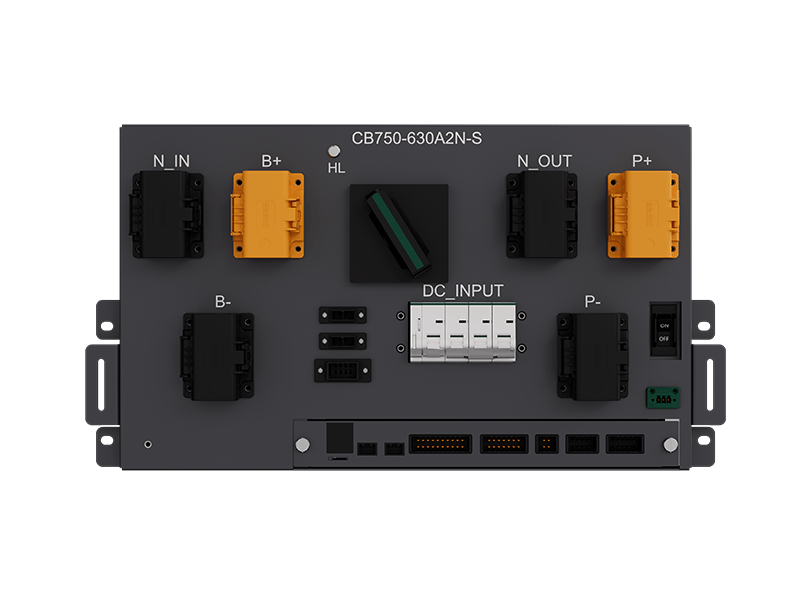

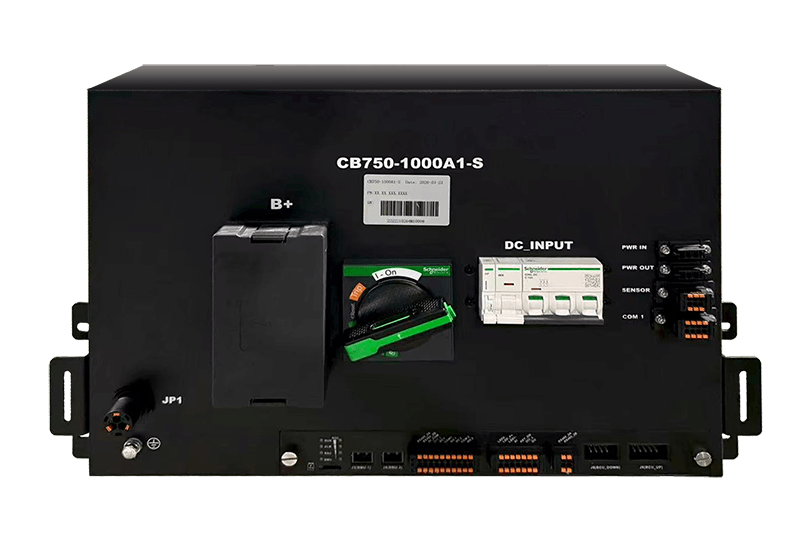

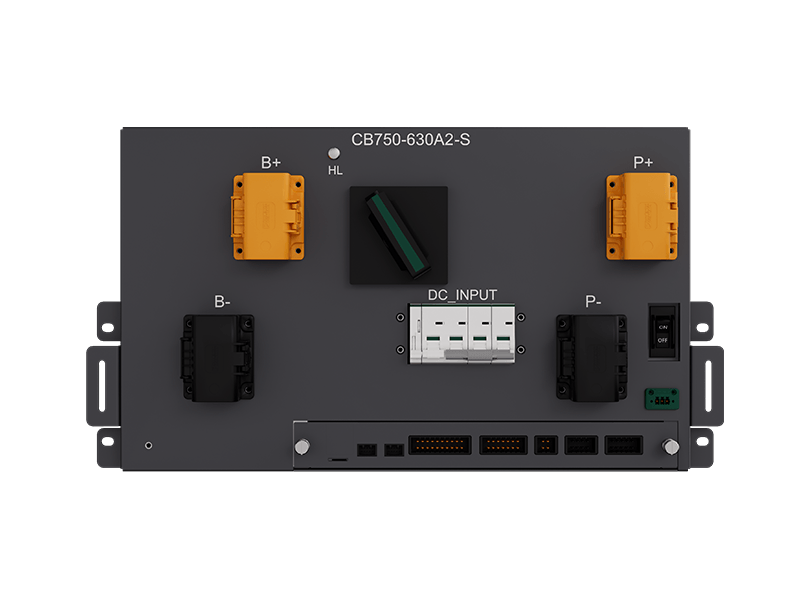

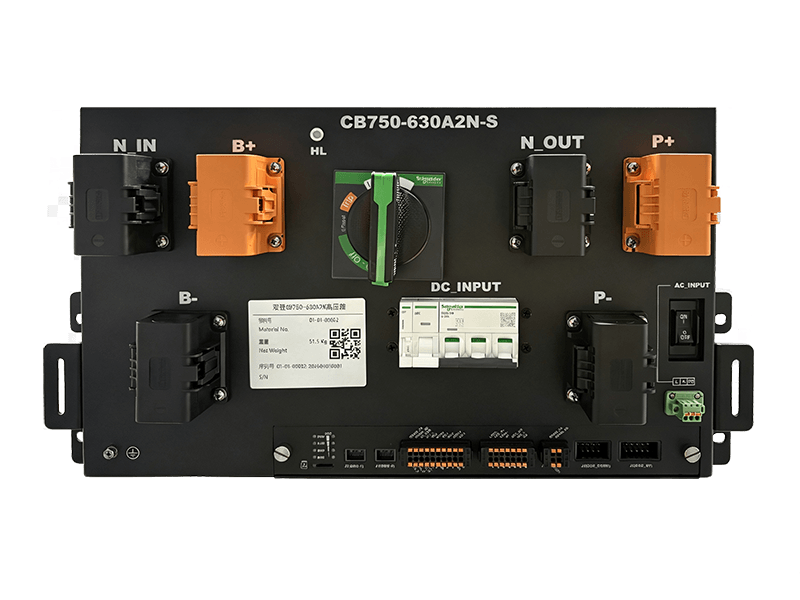

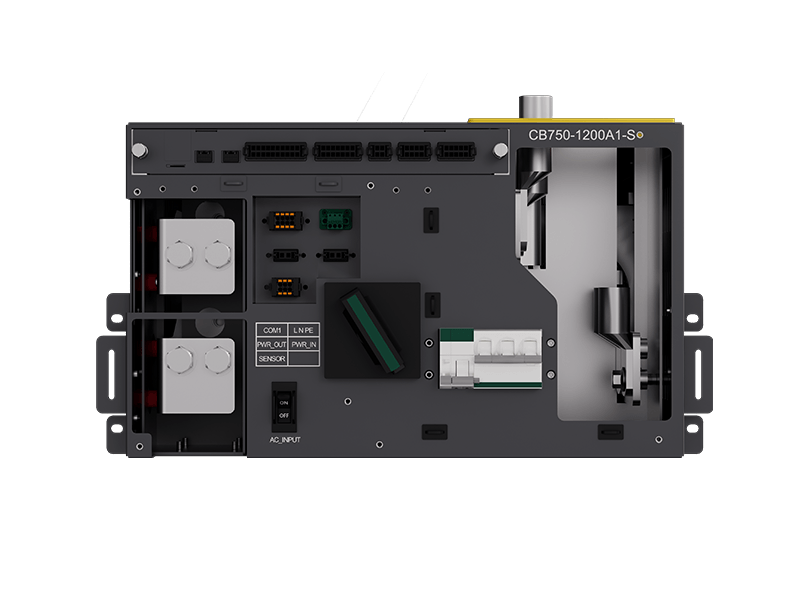

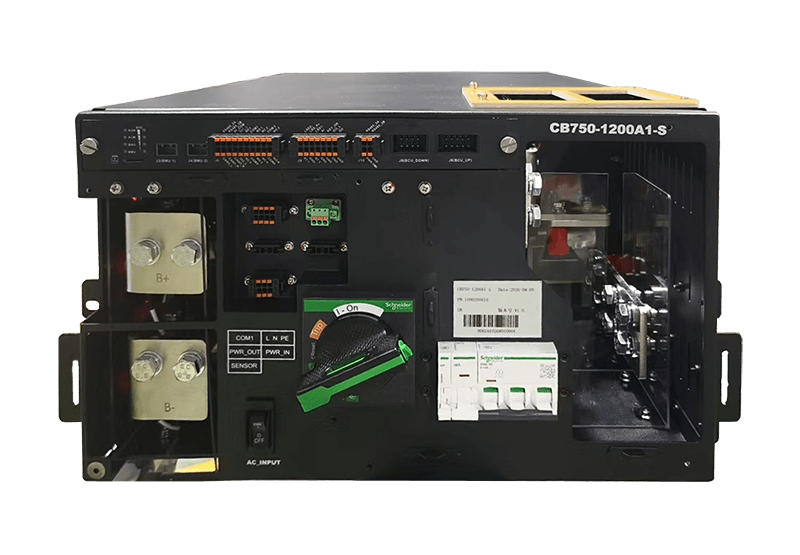

AIDC High-Voltage Box-PowerMatrix Tech, Inc.

This high-voltage box serves as the high-voltage power loop management unit for UPS/HVDC lithium battery systems. It is the control unit connecting battery clusters and UPS inverters, featuring functions such as voltage sampling, current sampling, loop contactor control and protection.

Main Function Features

High Voltage Circuit Control Multi-Layer Safety Protection Condition Monitoring & Data Acquisition Inter-Cluster Power Distribution Communication-Based Coordination

Ratings & Specifications

Operating Voltage Range250～750Vdc
Rated Operating Voltage512Vdc
Rated Operating Current600A
Maximum Operating Current600A@3min
Low-Voltage Control Power Supply24V
Overall DimensionsW440*D700*H265mm (excluding mounting lugs)
Operating Ambient Temperature-20℃ ~ 45℃
Relative Humidity10%~95%RH (non-condensing)
AltitudeAbove 2000m, derated in accordance with EN/IEC 62040 3
Ingress Protection RatingIP20
Withstand Voltage LevelWithstand voltage: 3110VDC, leakage current＜1mA
Insulation Resistance10MΩ, 1000VDC
Communication InterfaceCAN/RS485
Weight72±0.5kg
Cooling MethodForced Air Cooling

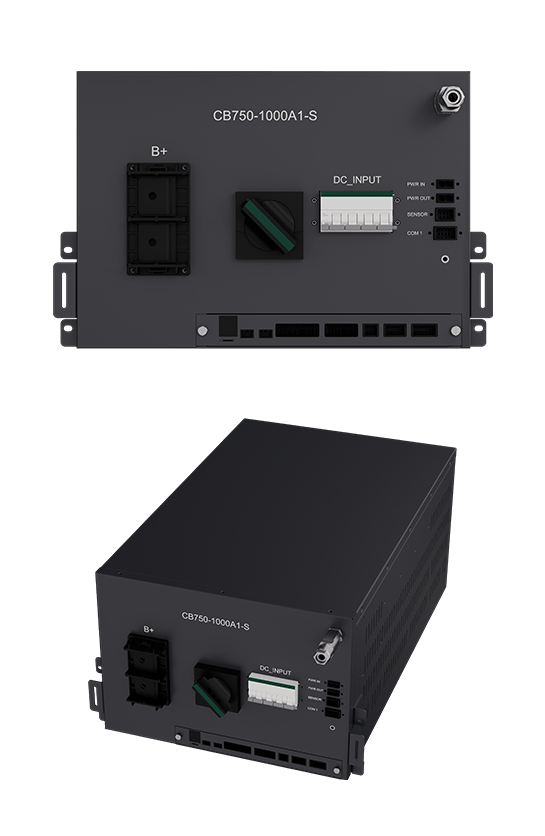

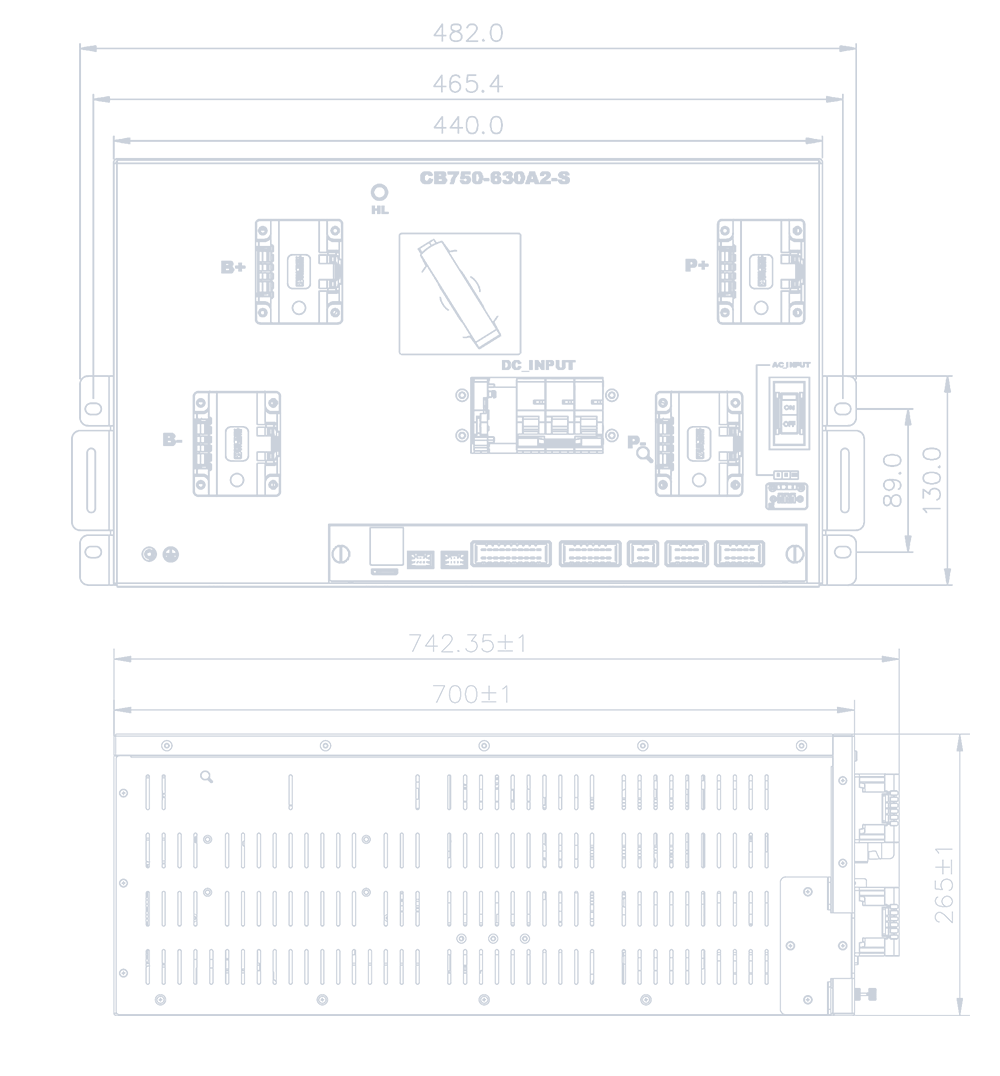

Outline dimension

This high-voltage box serves as the high-voltage power loop management unit for UPS/HVDC lithium battery systems. It is the control unit connecting battery clusters and UPS inverters, featuring functions such as voltage sampling, current sampling, loop contactor control and protection.

Main Function Features

High Voltage Circuit Control Multi-Layer Safety Protection Condition Monitoring & Data Acquisition Inter-Cluster Power Distribution Communication-Based Coordination

Ratings & Specifications

Operating Voltage Range250～750Vdc
Rated Operating Voltage512Vdc
Rated Operating Current600A
Maximum Operating Current600A@3min
Low-Voltage Control Power Supply24V
Operating Ambient Temperature-20℃～45℃
Relative Humidity10%~95%RH (non-condensing)
AltitudeAbove 2000m, derated in accordance with EN/IEC 62040 3
Ingress Protection RatingIP20
Withstand Voltage LevelWithstand voltage: 3110VDC, leakage current＜1mA
Insulation Resistance10MΩ, 1000VDC
Communication InterfaceCAN/RS485
Cooling MethodForced Air Cooling
Overall DimensionsW440*D700*H265mm(excluding mounting lugs)
Weight74±0.5kg

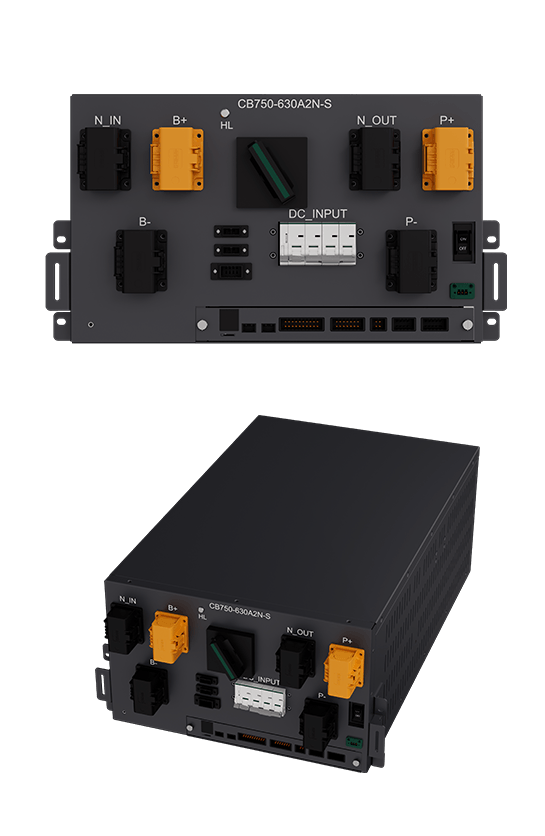

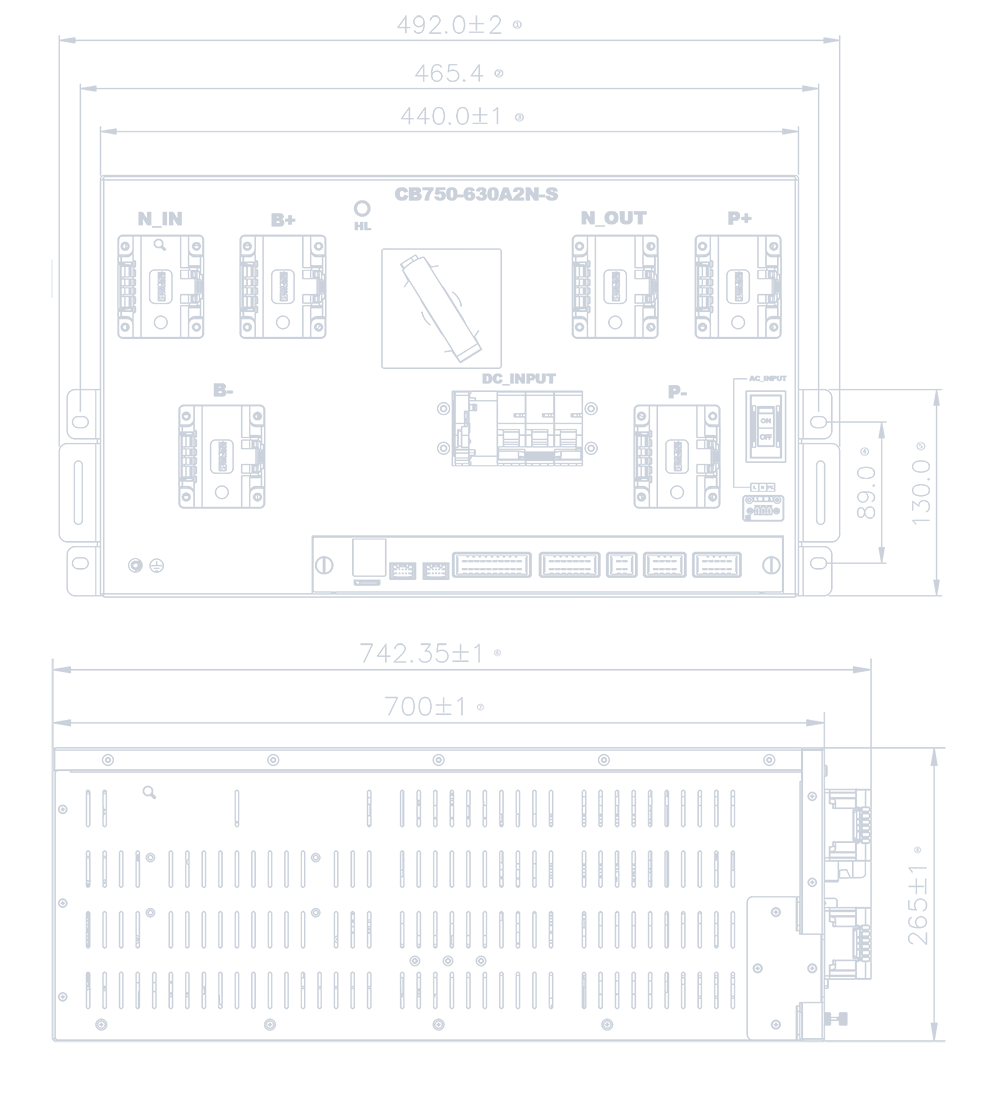

Outline dimension

This high-voltage box serves as the high-voltage power loop management unit for UPS/HVDC lithium battery systems. It is the control unit connecting battery clusters and UPS inverters, featuring functions such as voltage sampling, current sampling, loop contactor control and protection.

Main Function Features

High Voltage Circuit Control Multi-Layer Safety Protection Condition Monitoring & Data Acquisition Inter-Cluster Power Distribution Communication-Based Coordination

Ratings & Specifications

Operating Voltage Range250～750Vdc
Rated Operating Voltage512Vdc
Rated Operating Current1026A
Maximum Operating Current1172A@3min
Low-Voltage Control Power Supply24V
Operating Ambient Temperature-20℃～45℃
Relative Humidity10%~95%RH (non-condensing)
AltitudeAbove 2000m, derated in accordance with EN/IEC 62040 3
Ingress Protection RatingIP20
Withstand Voltage LevelWithstand voltage: 3110VDC, leakage current＜1mA
Insulation Resistance10MΩ, 1000VDC
Communication InterfaceCAN/RS485
Cooling MethodForced Air Cooling
Overall DimensionsW440*D700*H270mm(excluding mounting lugs)
Weight74±0.5kg

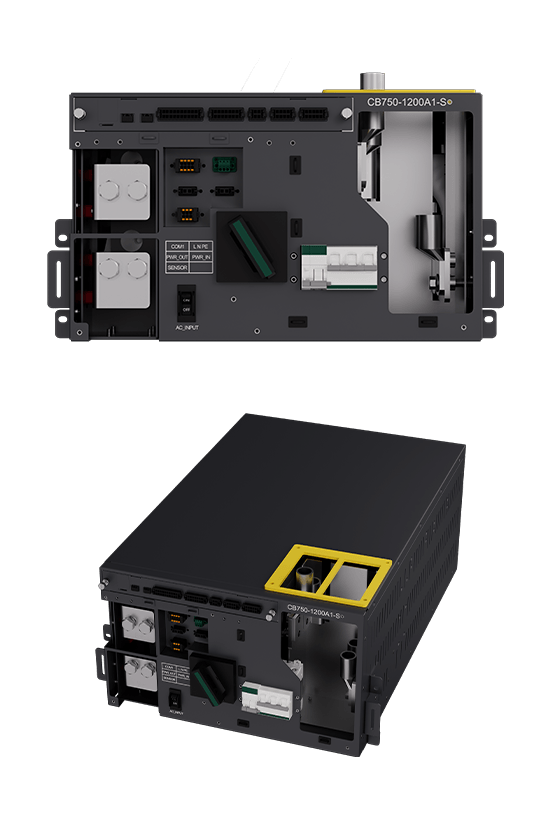

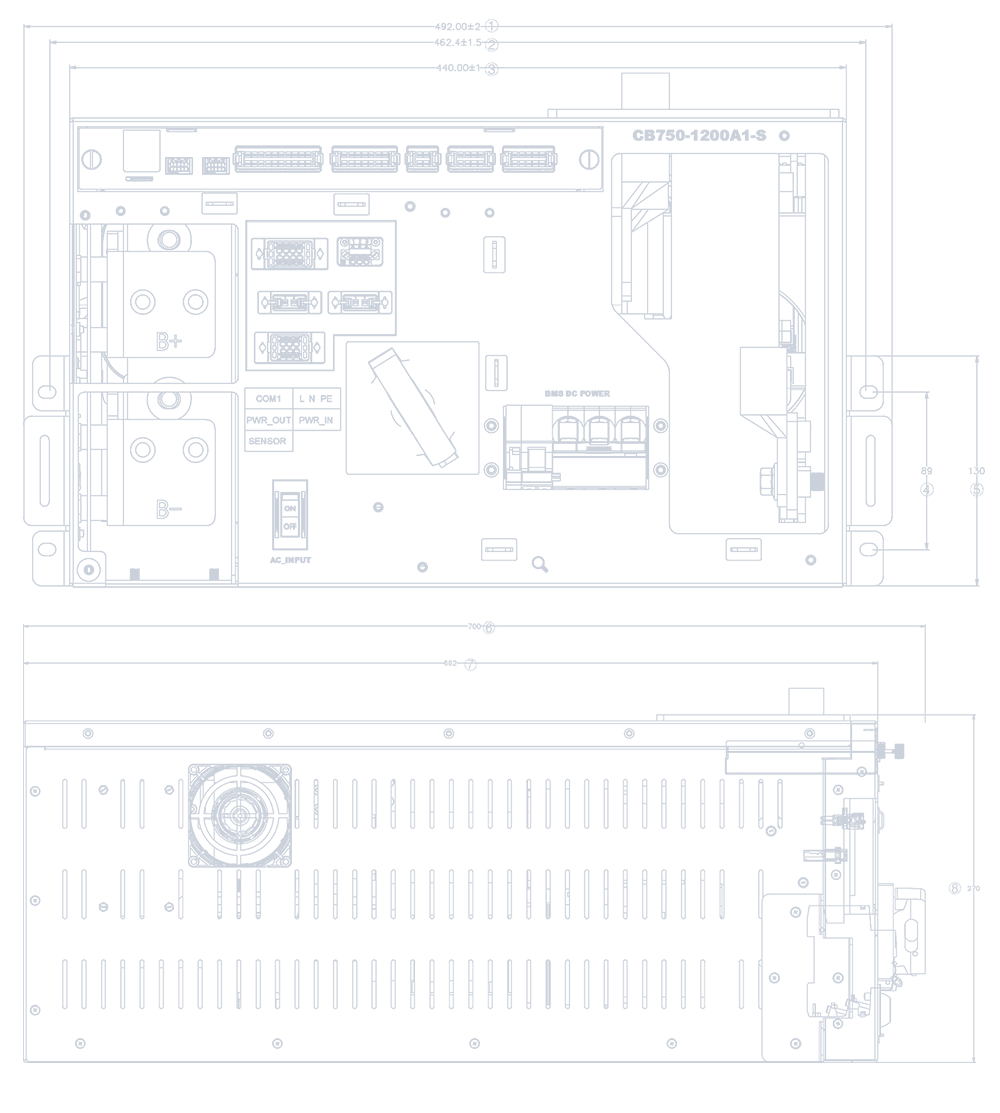

Outline dimension

This high-voltage box serves as the high-voltage power loop management unit for UPS/HVDC lithium battery systems. It is the control unit connecting battery clusters and UPS inverters, featuring functions such as voltage sampling, current sampling, loop contactor control and protection.

Main Function Features

High Voltage Circuit Control Multi-Layer Safety Protection Condition Monitoring & Data Acquisition Inter-Cluster Power Distribution Communication-Based Coordination

Ratings & Specifications

Operating Voltage Range250～750Vdc
Rated Operating Voltage512Vdc
Rated Operating Current800A
Maximum Operating Current826A@3min
Low-Voltage Control Power Supply24V
Operating Ambient Temperature-20℃～45℃
Relative Humidity10%~95%RH(non-condensing)
AltitudeAbove 2000m, derated in accordance with EN/IEC 62040 3
Ingress Protection RatingIP20
Withstand Voltage LevelWithstand voltage 3110VDC, leakage current＜1mA
Insulation Resistance10MΩ, 1000VDC
Communication InterfaceCAN/RS485
Cooling MethodForced Air Cooling
Overall DimensionsW440*D700*H310mm(excluding mounting lugs)
Weight74±0.5kg

Main Function Features

Ratings & Specifications

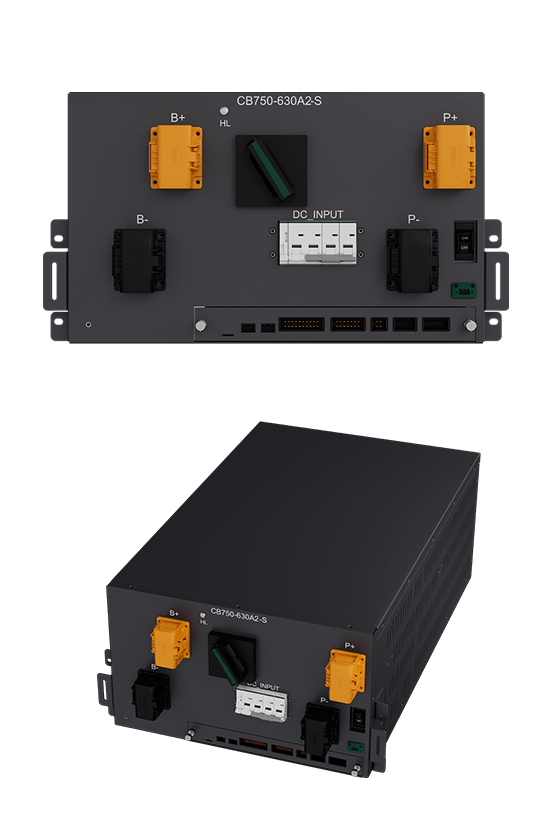

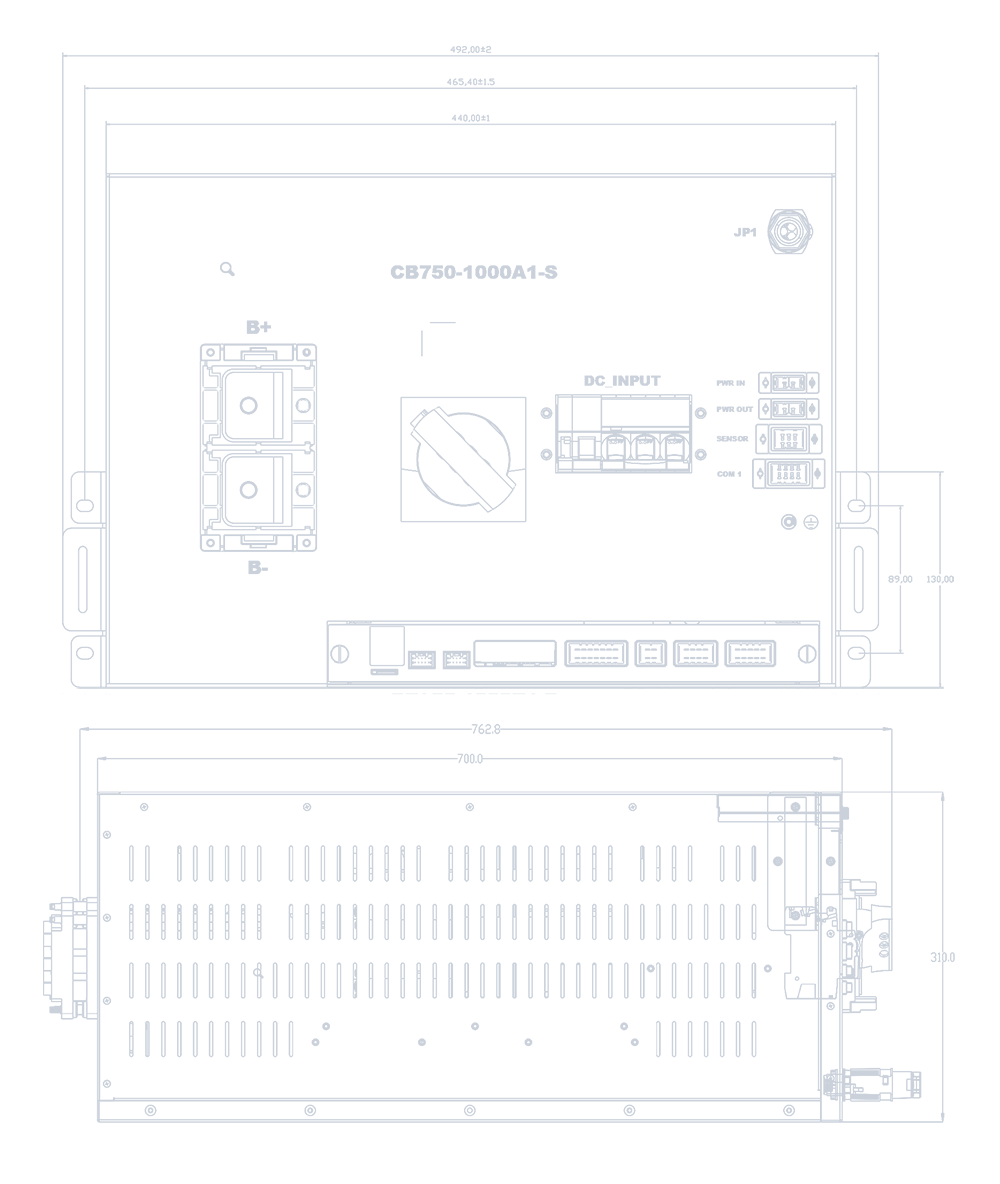

Outline dimension

Main Function Features

Ratings & Specifications

Outline dimension

Main Function Features

Ratings & Specifications

Outline dimension

Main Function Features

Ratings & Specifications

Outline dimension
