CGIS-12~40.5kV Gas Insulated Switchgear-PowerMatrix Tech, Inc.

Core component features

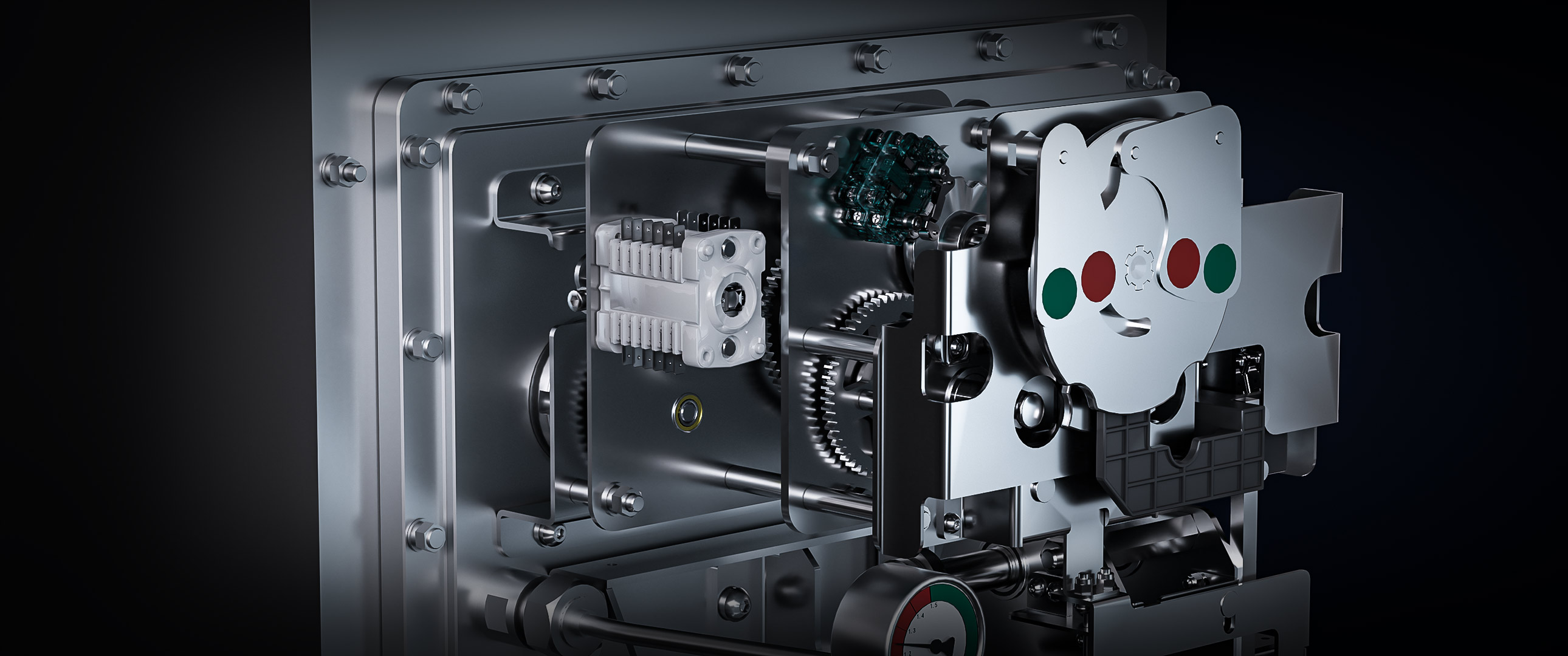

Isolating mechanism It adopts precise transmission structure with gears. This structure allows for both manual and motor operation. Its transmission is stable, and positioning is precise. Its opening and closing positions are accurate. It can also realize protection for mechanical overload.

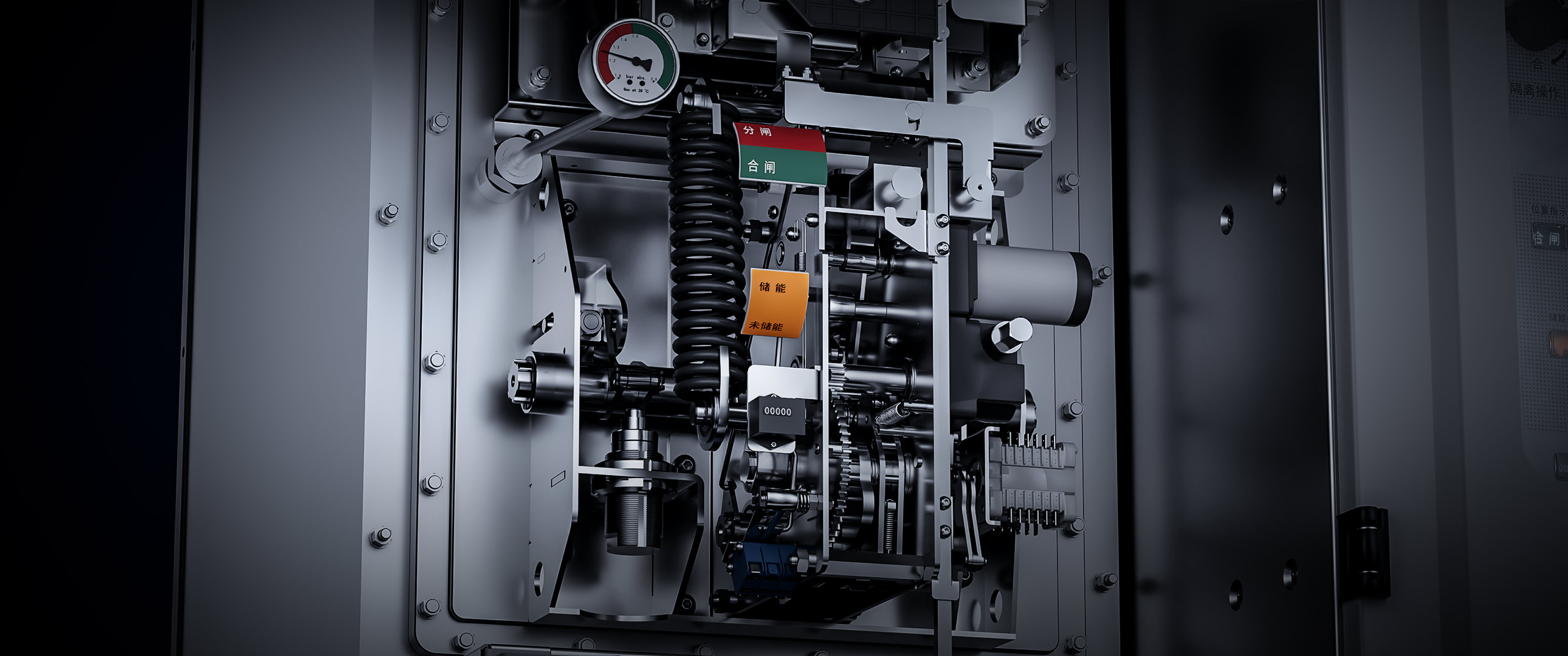

Circuit breaker mechanism It adopts precise transmission structure with reclosing function. Its output angle is accurate. It has long lifespan, great output power and efficient transmission.

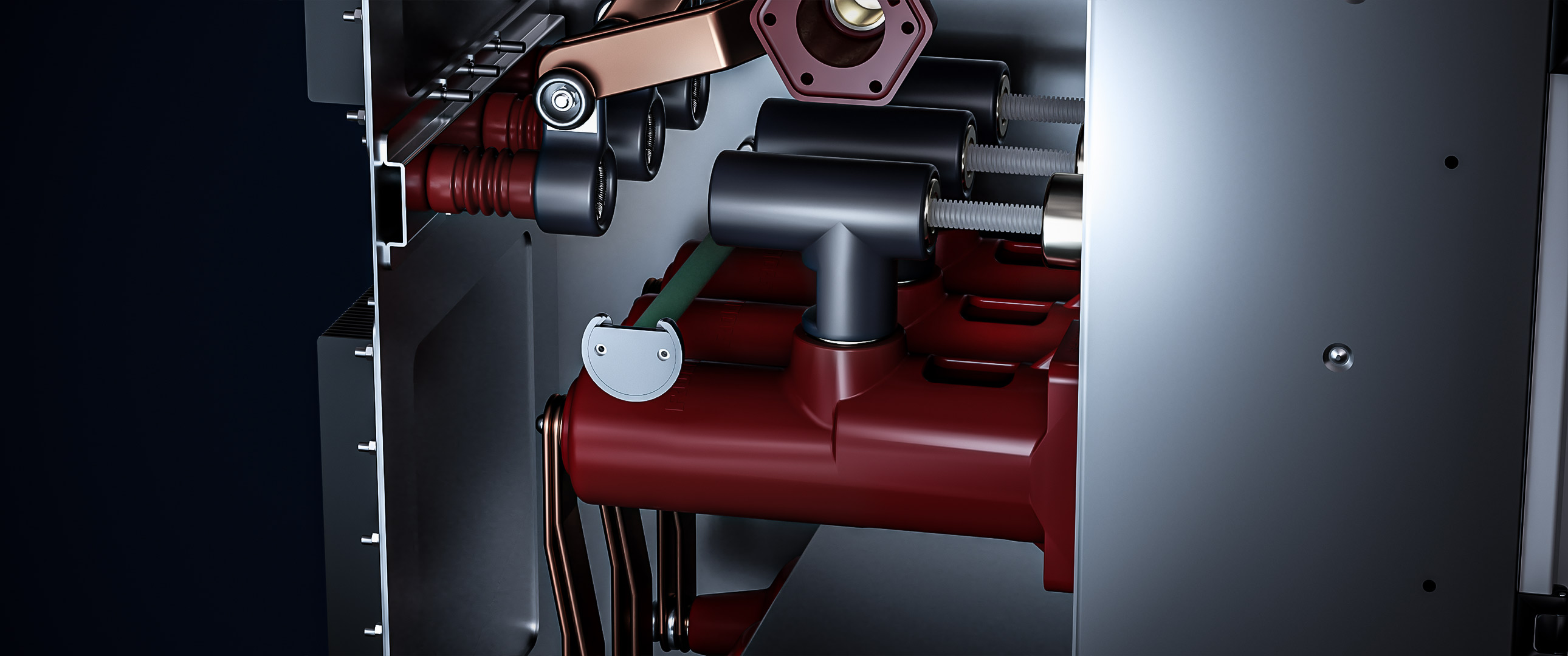

Circuit breaker It adopts vacuum arc extinguishing technology, with great insulation performance and outstanding breaking capability. It can avoid insulation dirt caused by breaking. Plating structures are good for heat radiation of primary circuit and ideal for reduction of switch temperature rise.

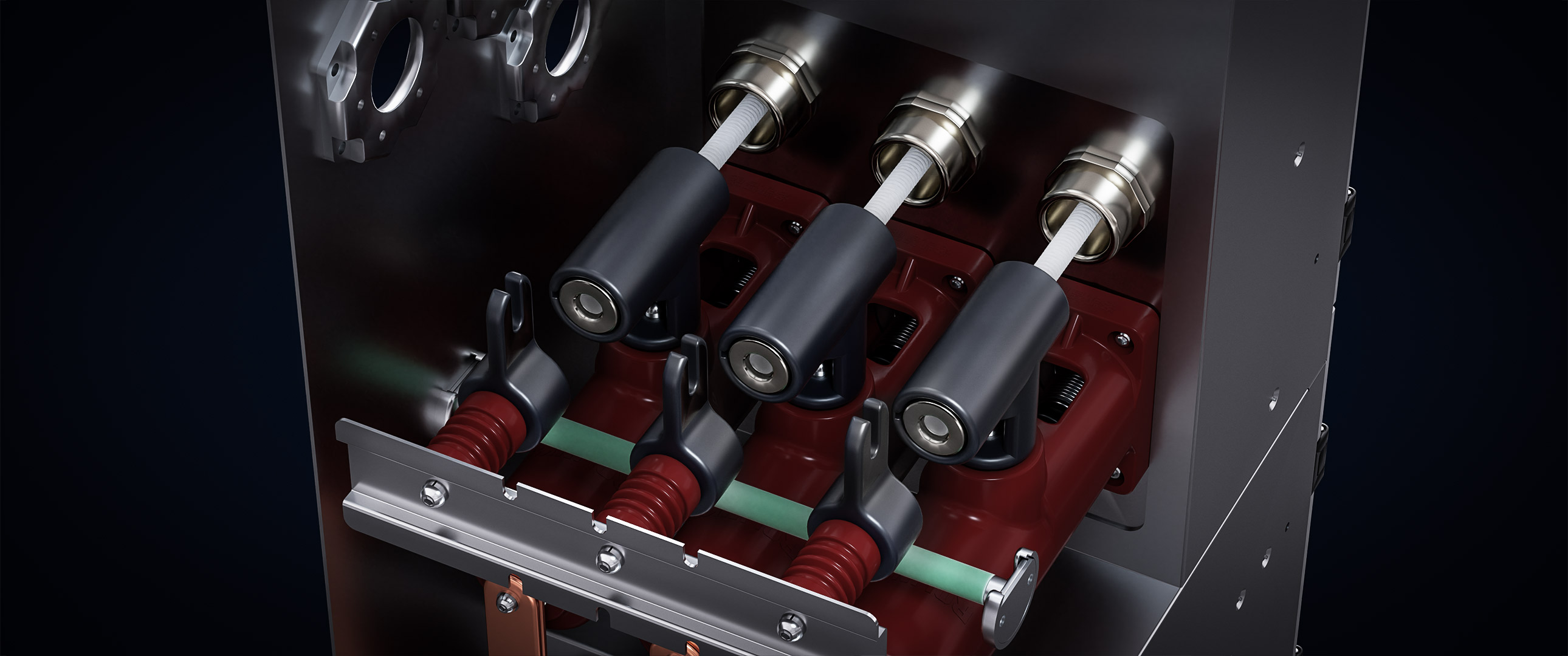

Isolating switch In order to avoid mis-operation, isolating switches adopt screws and linear-motion three-position design with 80kA peak making current.

Core component features

Circuit breaker mechanism It adopts precise transmission structure with reclosing function. Its output angle is accurate. It has long lifespan, great output power and efficient transmission.

Isolating switch In order to avoid mis-operation, isolating switches adopt screws and linear-motion three-position design with 80kA peak making current.

01 /

Component details

Isolating and earthing static/ moving contact

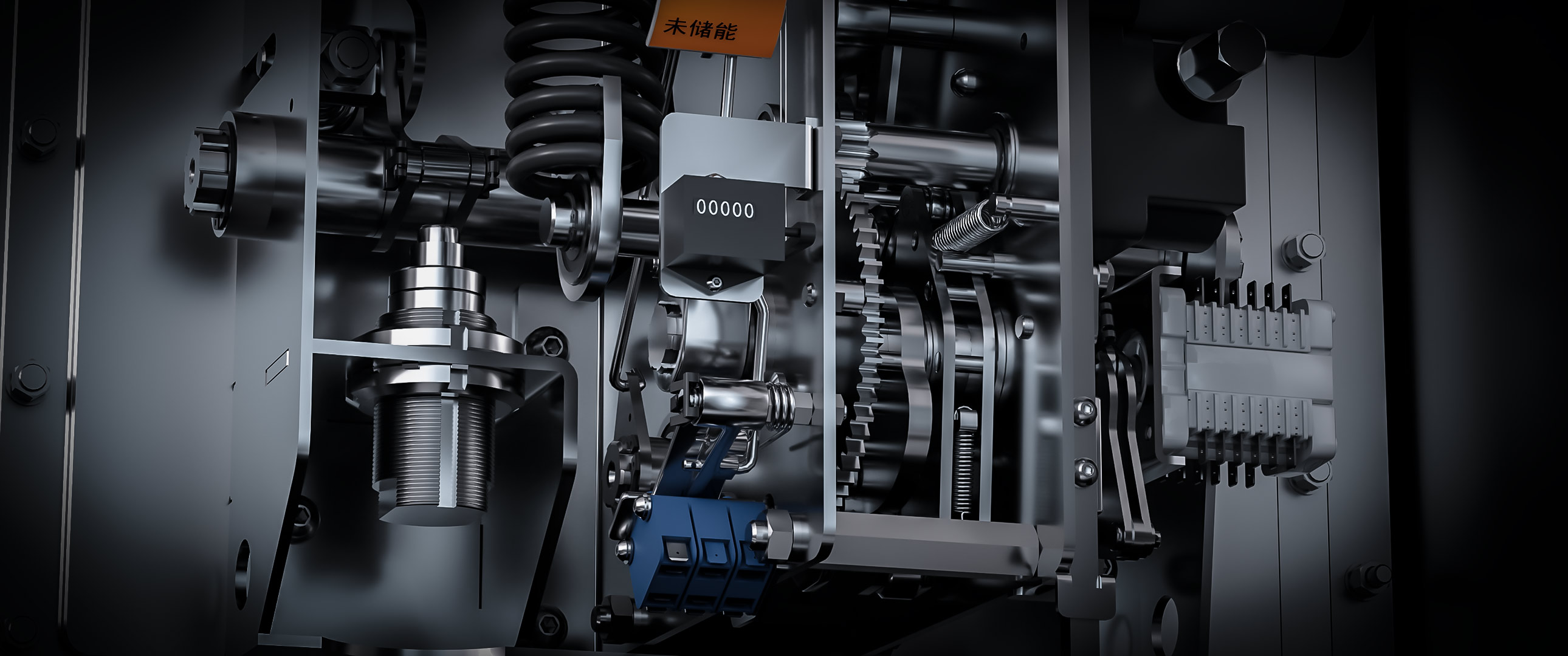

Operation mechanism The transmission system adopts the bearing design with flexible rotation and efficient transmission. The surface finish adopts zinc-nickel alloy with good anti-corrosion ability.

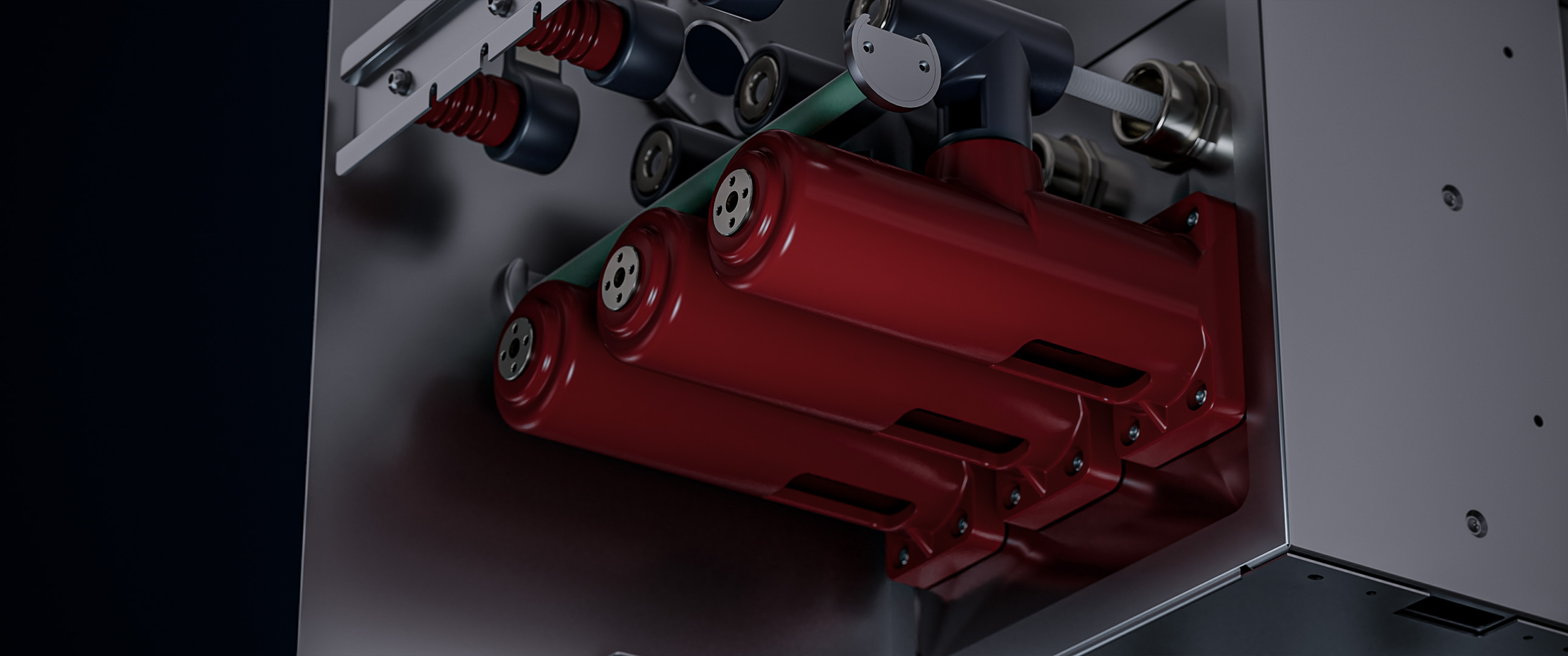

Circuit breaker The embedded poles are made of high-quality materials with high insulation strength. They are miniaturized, maintenance-free and easy to install, and the special sealing process and unique structural design ensure the product's extremely low local emission value.

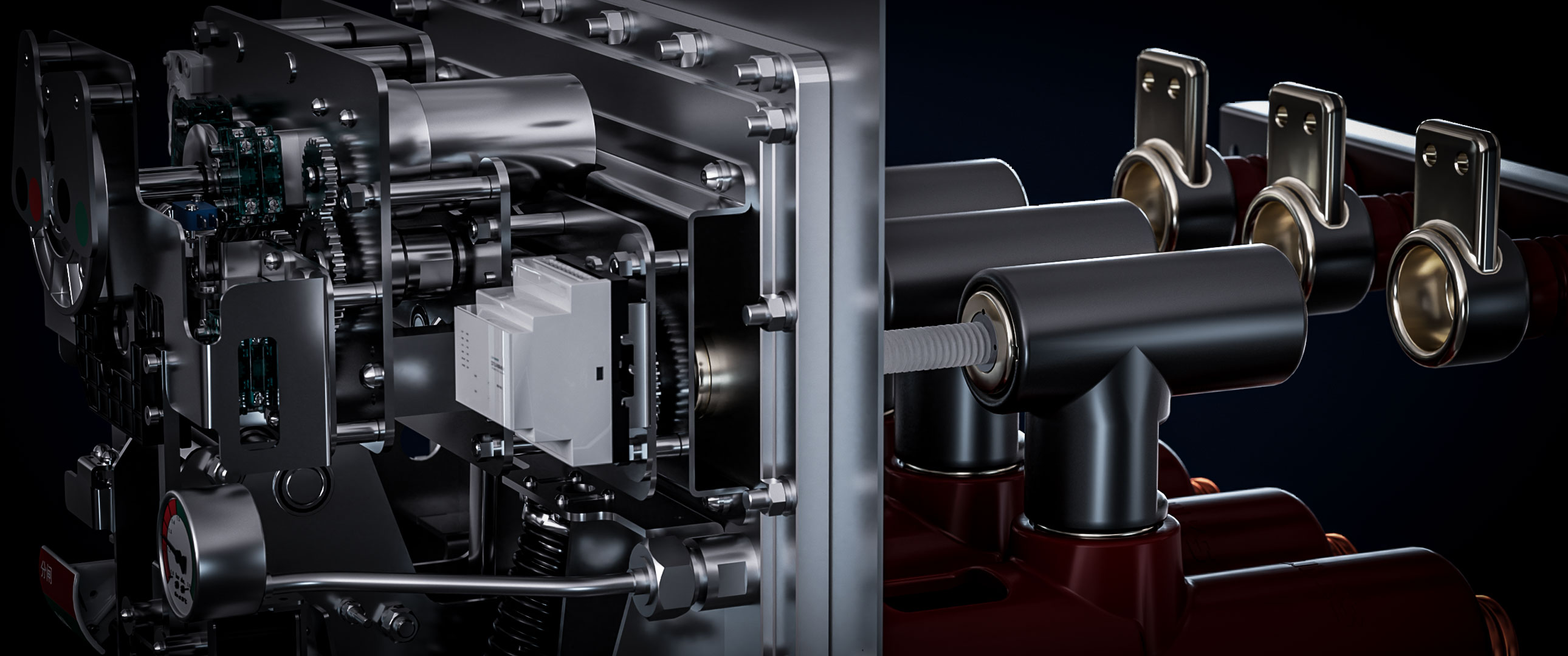

Isolating switch Metal precision processing base plates are adopted. The switch also uses high-strength cam-driven transmission system and is equipped with high-precision nylon screws and nuts. The isolating switch transmission is of high precision and stable movement.

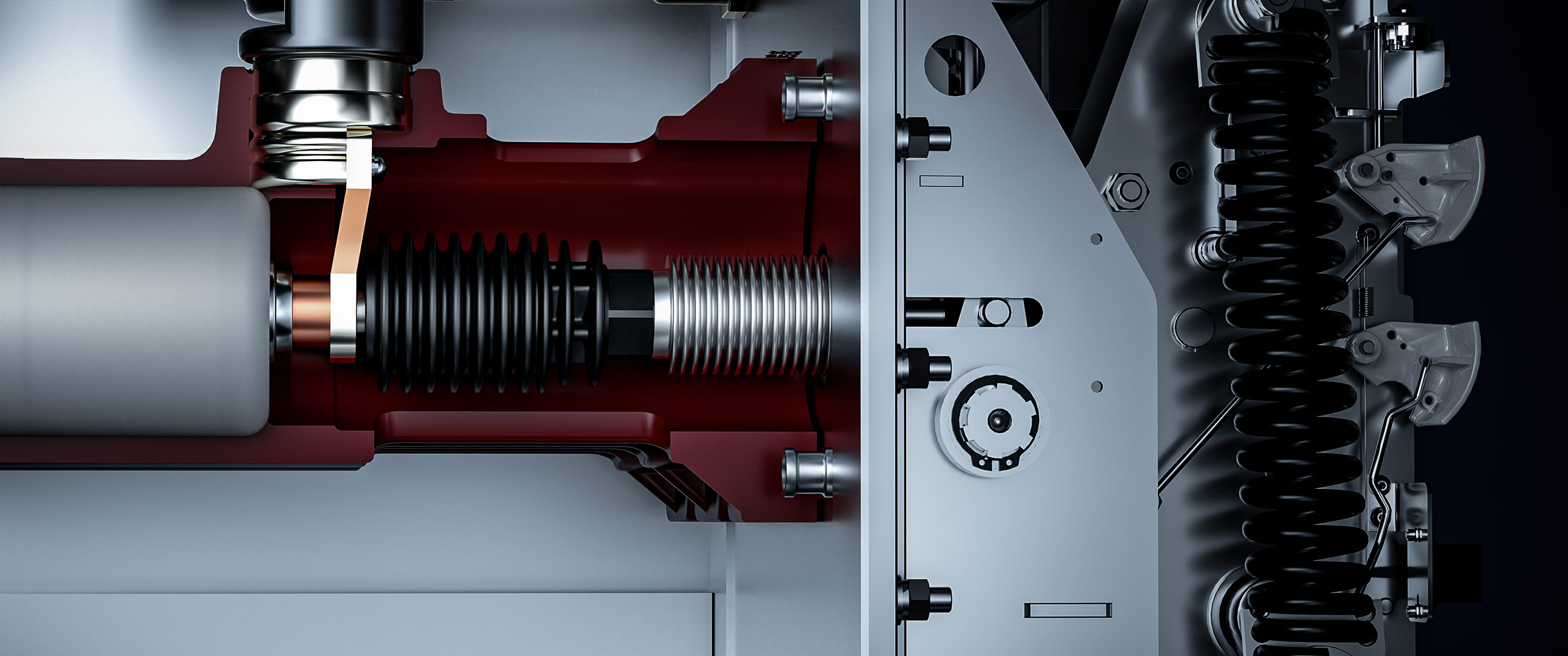

Opening and closing structure The crank-driven linear-motion structure is adopted between mechanisms and interrupters, which is of high transmission efficiency, stable movement and small bouncing.

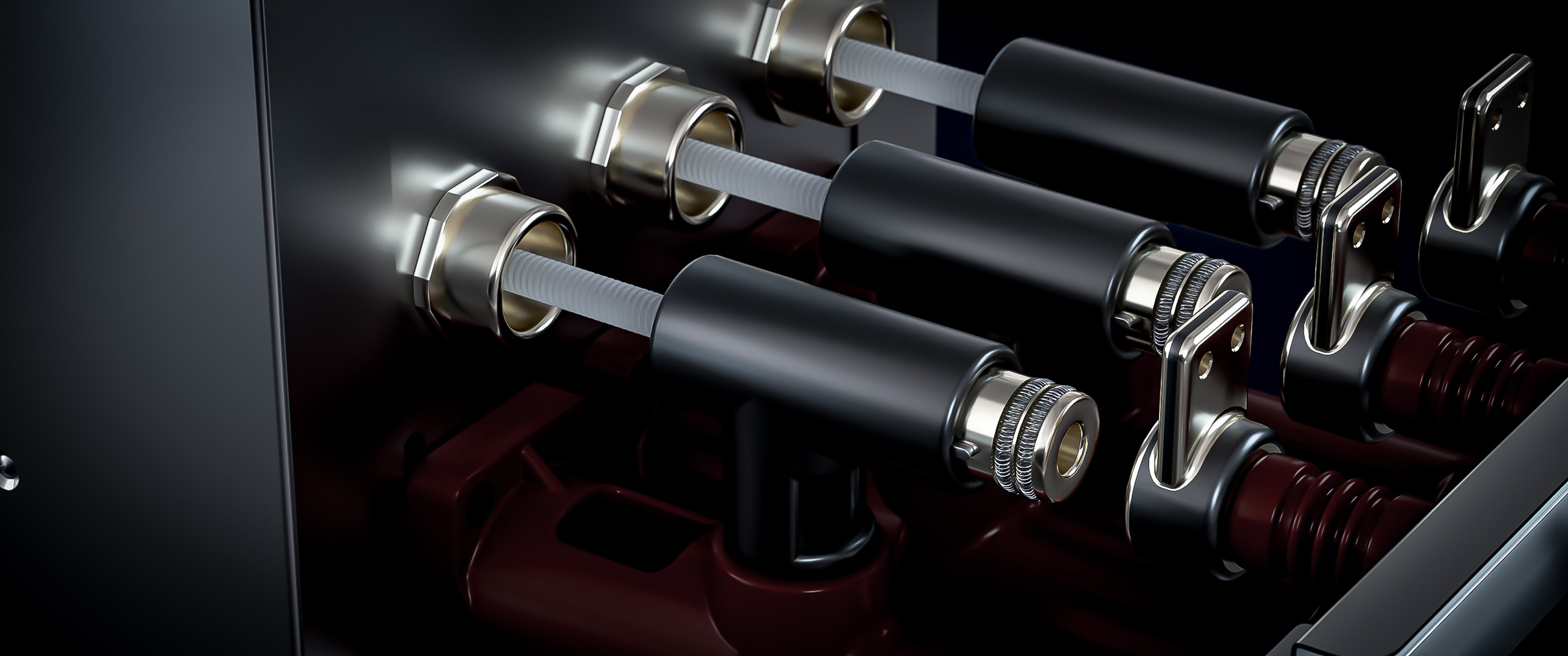

Isolating and earthing static/ moving contact Isolating static and moving contacts with shared voltage fields adopt condensation technology. The contacts are of good insulation and high hardness. They adopt spring contacts work as isolating connection. They are of small temperature rise and high performance in thermal stability.

Component details

Operation mechanism The transmission system adopts the bearing design with flexible rotation and efficient transmission. The surface finish adopts zinc-nickel alloy with good anti-corrosion ability.

Opening and closing structure The crank-driven linear-motion structure is adopted between mechanisms and interrupters, which is of high transmission efficiency, stable movement and small bouncing.

01 / 04

Live locking device on earthing switch

When high-voltage incoming wirings are live or operating handles are pulled out, the device can realize automatic locking and over-temperature protection, which is safe and reliable.
In case of emergency, it can realize emergency unlocking with mechanical keys.

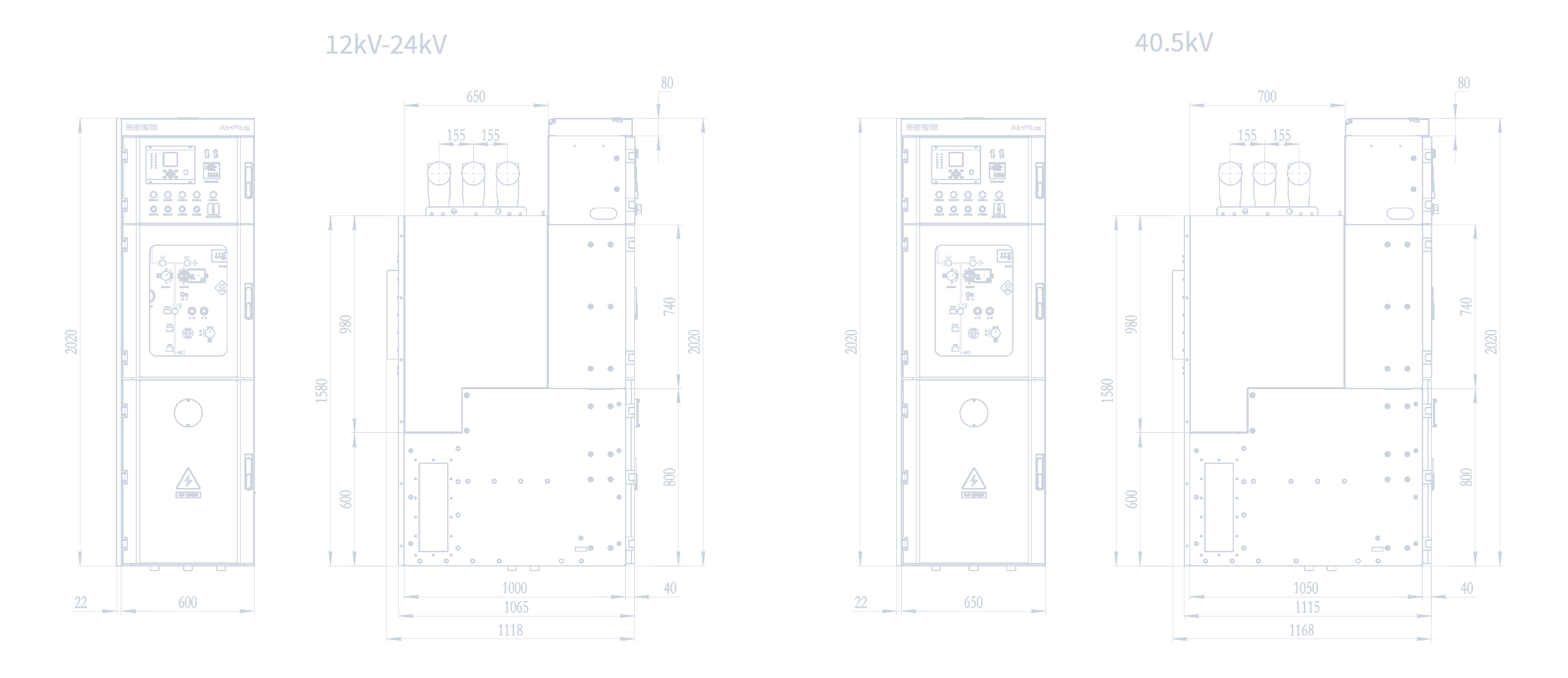

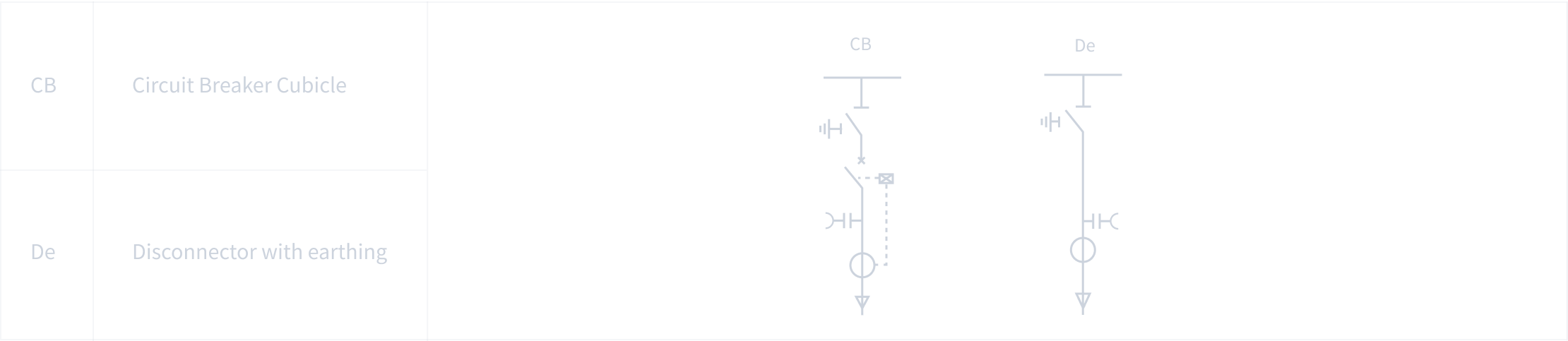

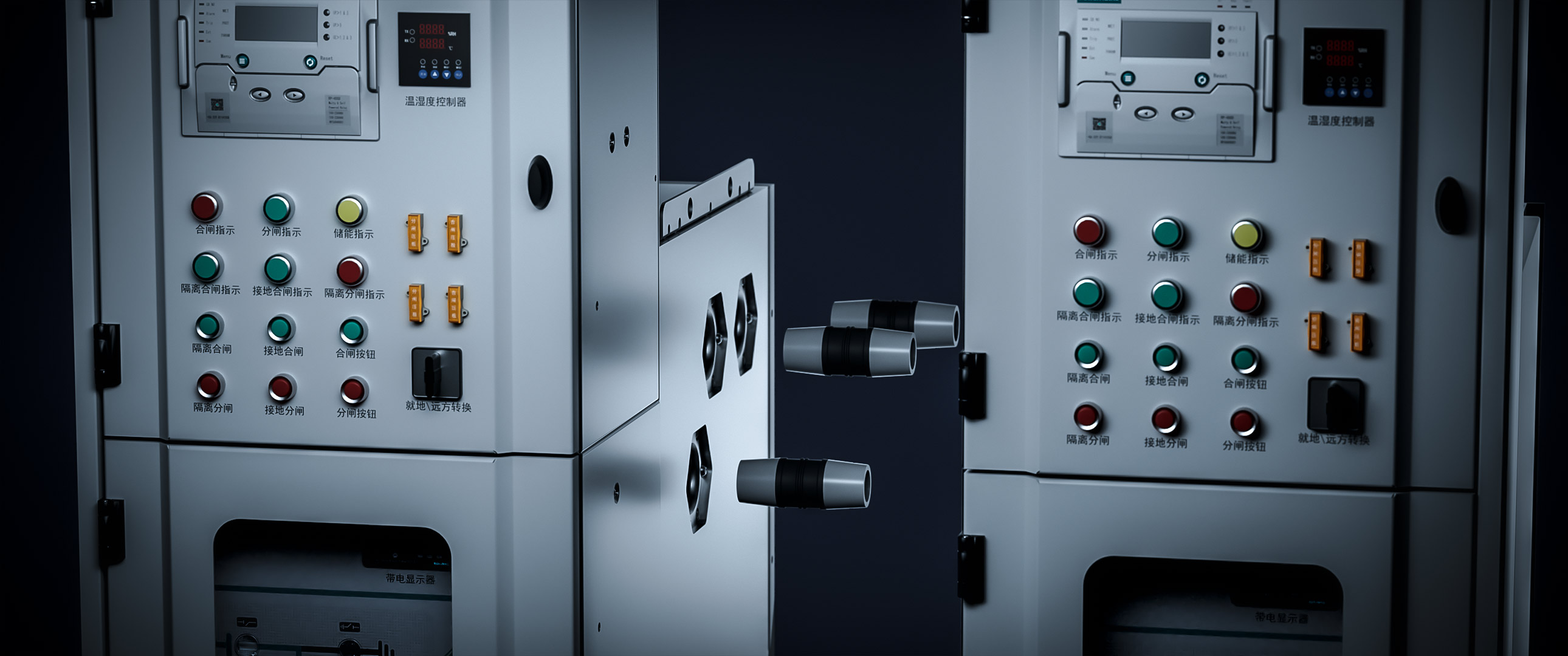

Ratings & Specifications Operating Environment Product Solutions External Dimensions

Parameters	Vacuum Circuit Breaker			Isolating / Earthing Switch
Rated voltage	12 kV(Dry air)	24 kV(SF6)	40.5 kV(SF6)	12 kV(Dry air)	24 kV(SF6)	40.5 kV(SF6)
Power frequency withstand voltage	42/48 kV	65/79 kV	95/118 kV	42/48 kV	65/79 kV	95/118 kV
Impulse withstand voltage	75/85 kV	125/145 kV	185/215 kV	75/85 kV	125/145 kV	185/215 kV
Rated current	1250 A			1250 A
Rated short circuit breaking current	25/31.5 kA
Rated short circuit making current	63/80 kA			80 kA
Rated short time withstand current	(25/4) or (31.5/4) kA			31.5 kA
Mechanical life	Circuit breaker 10000 times			Isolating 5000 times / Earthing 5000 times

CGIS-12~40.5kV Gas Insulated Switchgear shall comply with GB/T11022-2020，GB3906-2020，GB1984-2024，GB1985-2023，IEC62271-1，IEC62271-102，IEC62271-200，IEC62271-100，IEC 60255 and other standards.

Item Parameter

Ambient temperatureMaximum temperature +75℃；
Maximum temperature（24h average） +35℃；
Minimum temperature -45℃；

HumidityMaximum average relative humidity (24 hours ≤ 95%; monthly ≤ 90%)

IACAFLR 31.5kA 1s

Service continuity categoryLSC 1

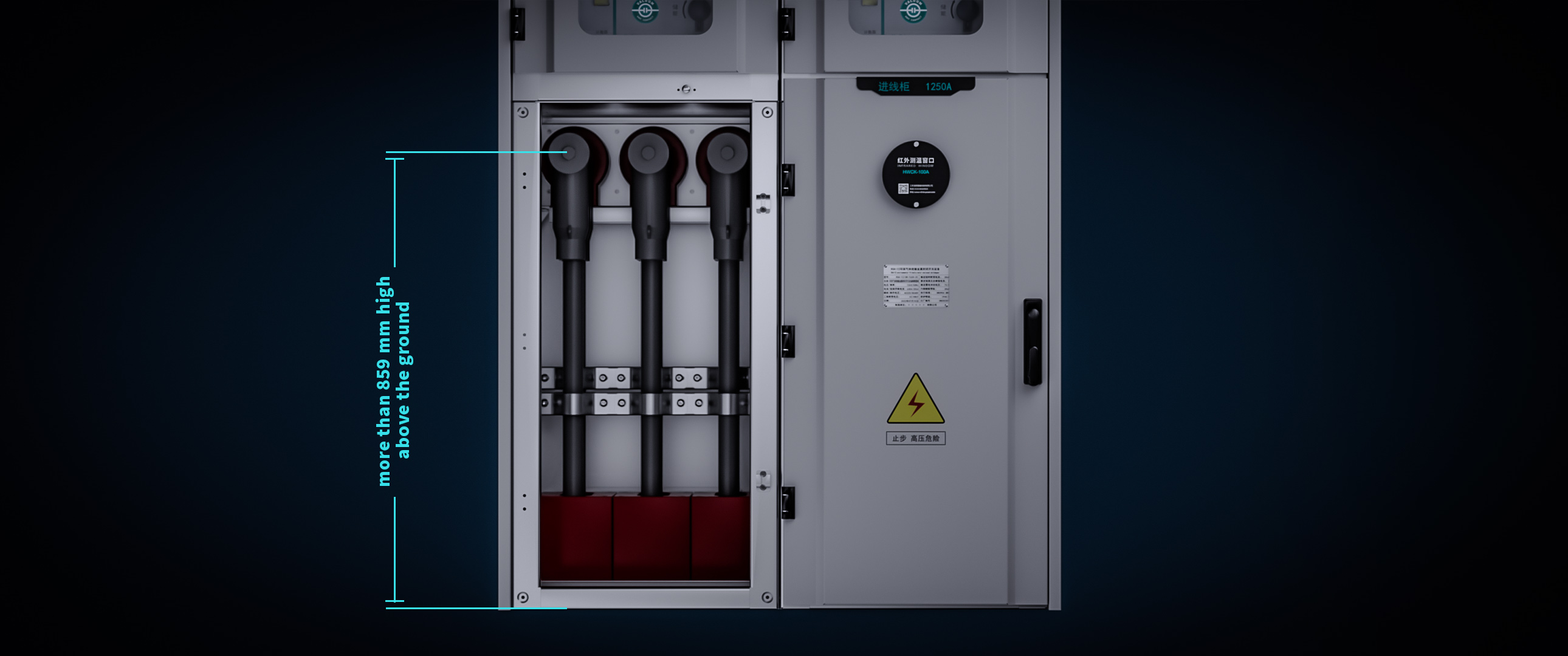

Cable bushing standardDIN47636T and T2/EDF HN 525-61

Altitude≤ 2000m (under standard inflation pressure)

Gas pressure0.04MPa below 20°C (20°C absolute pressure)

Annual leakage rate≤0.5‰/year

Immersion test0.3 bar pressure underwater 24h

Protection degreeTank IP67
Enclosure IP4X
