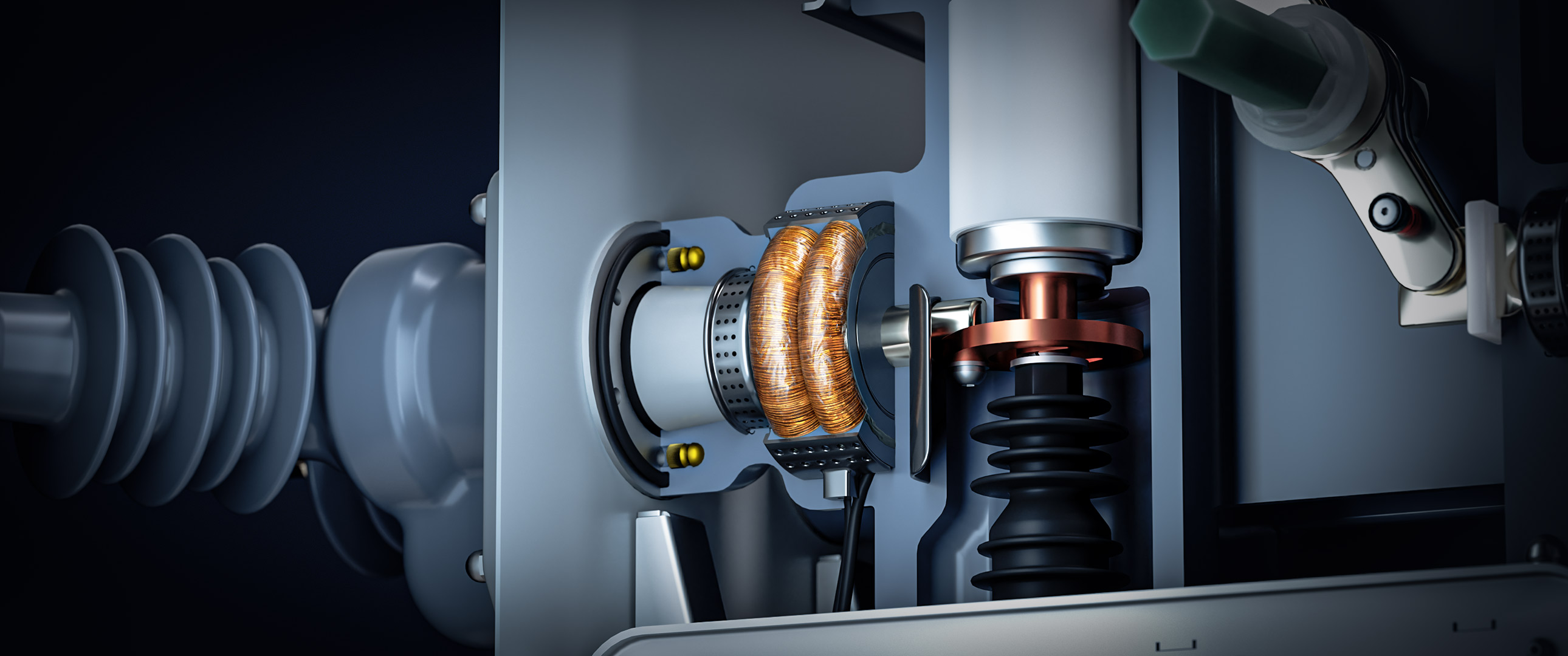

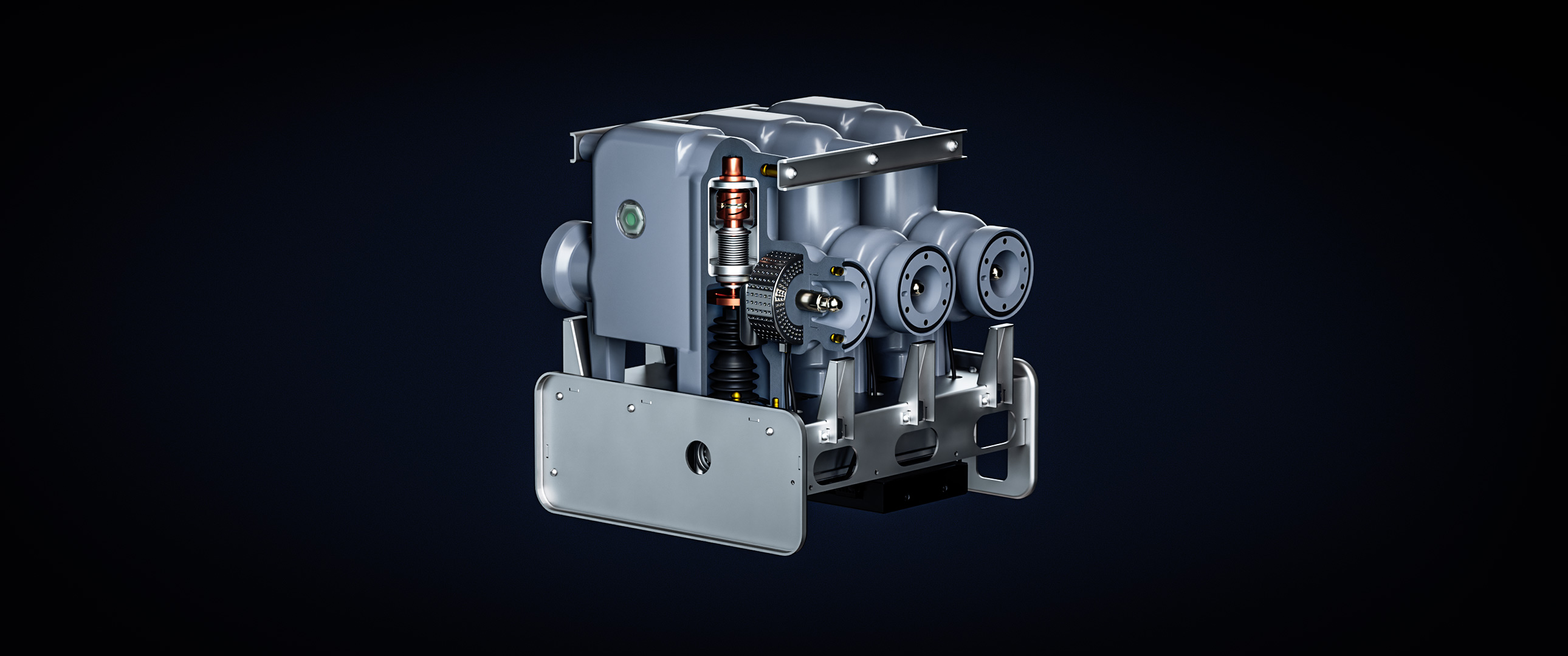

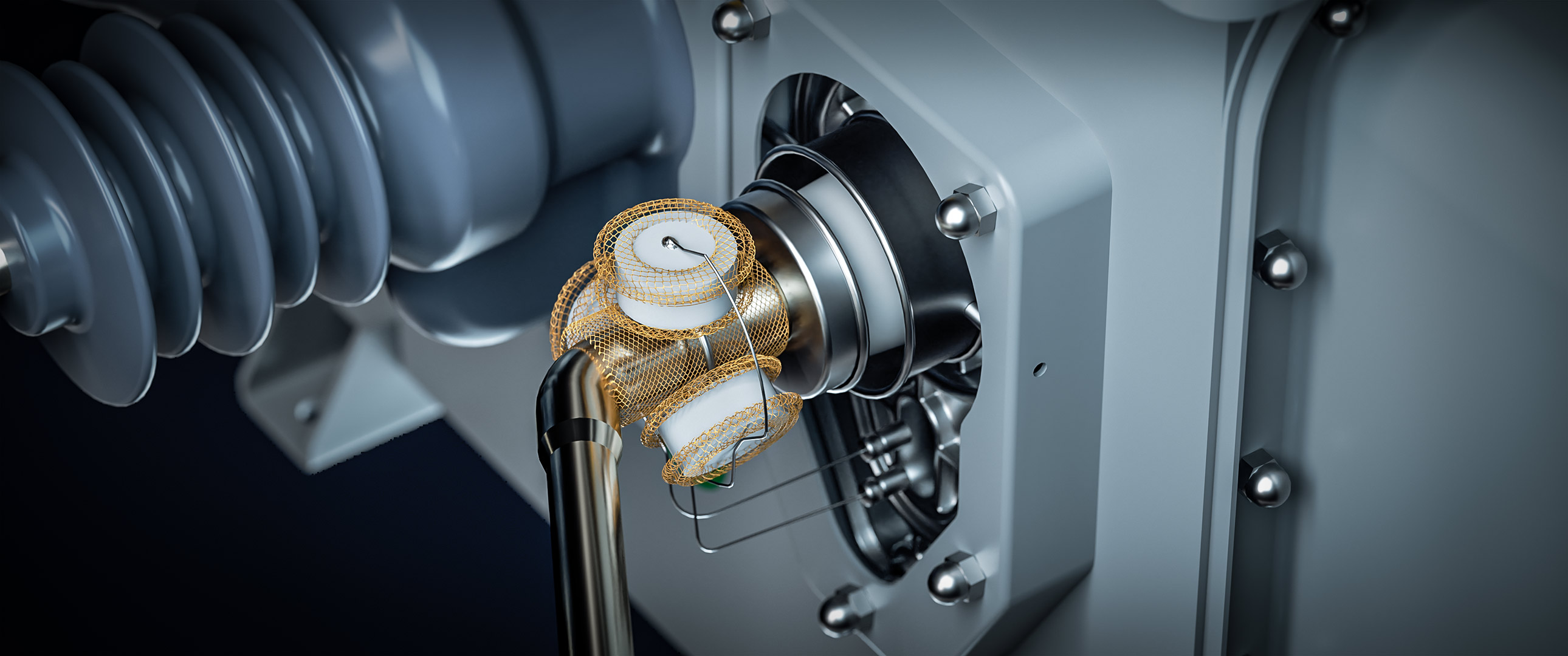

The double-side outlet bushing has built-in pick-up capacitors and EVTs, and the phase sequence and zero sequence CTs, vacuum interrupters, and double-fracture isolating switches are built into the solid-sealed poles, allowing deep integration of primary and secondary.

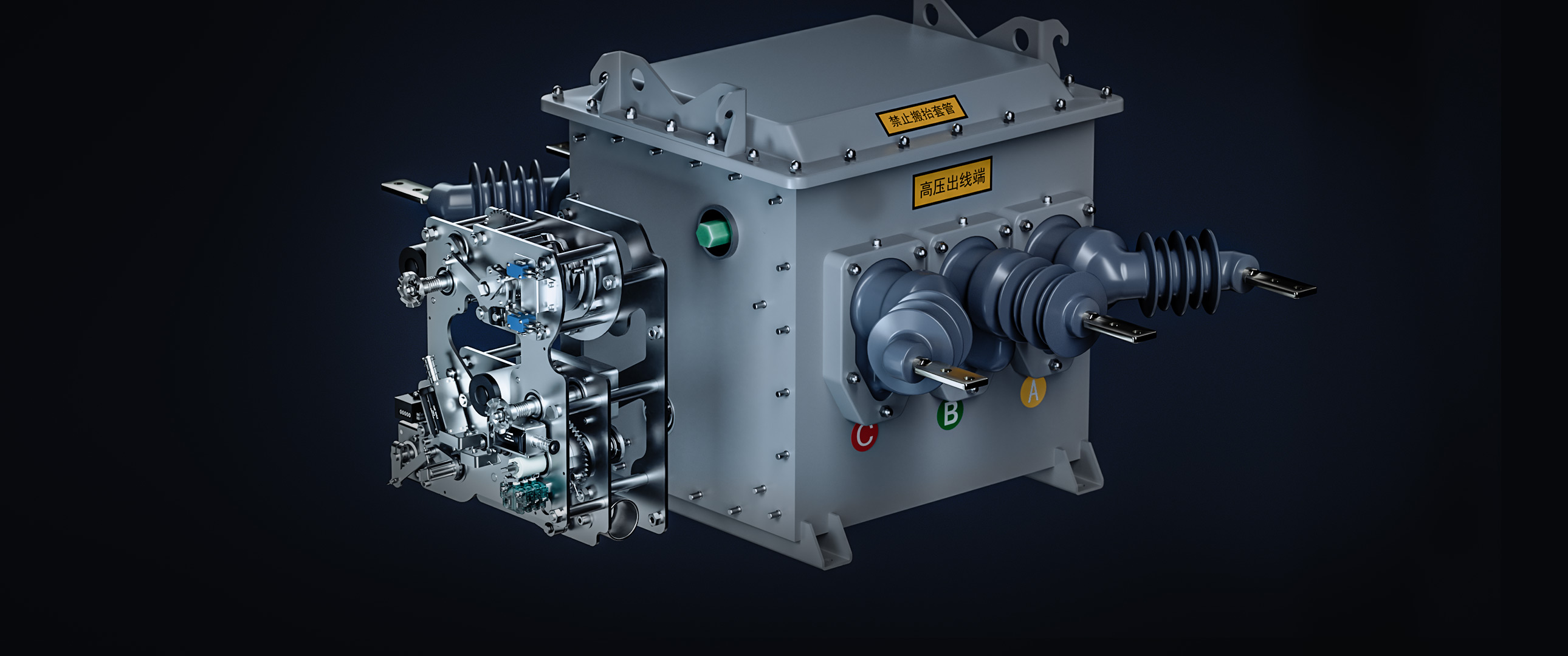

The whole switchgear adopts fully sealed structure, which is free from the influence of external environment. The circuit breaker and isolating mechanism are equipped with motorized operation, which can realize one-click control.
The re-sampling module is in the lower compartment of the switchgear, and the lower compartment adopts a metal-enclosed structure to ensure complete isolation of the primary and secondary circuits, and at the same time, it is equipped with removable access ports to facilitate maintenance by operation and maintenance personnel.
When the built-in pickup capacitor is damaged or the sleeve is broken due to installation, it can be easily disassembled and replaced at any time.
The internal arc fault pressure relief device, externally fitted with a bowl-shaped anti-splash part, can effectively control the direction and path of the drain storage, to avoid causing harm to people and things near the switch.

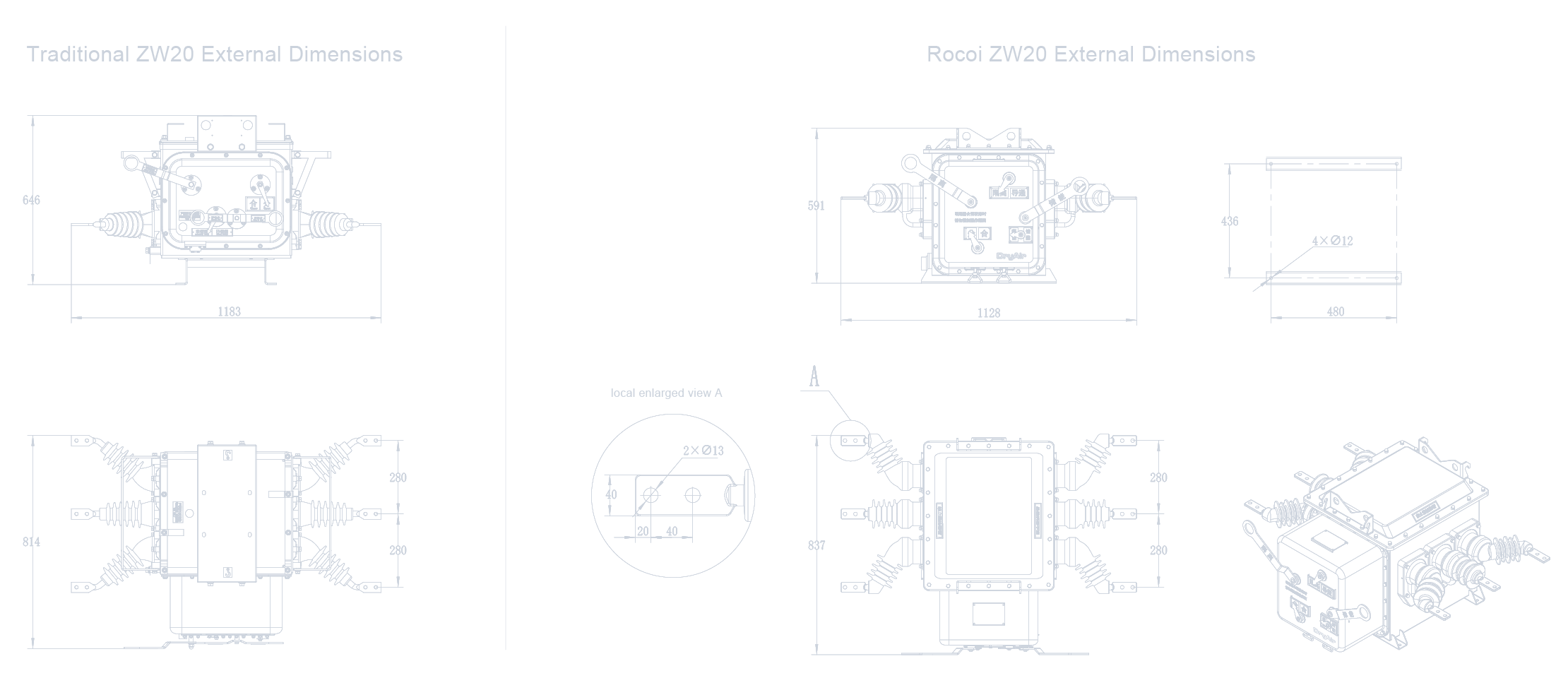

Installation is flexible and varied, with both single-pole and H pole mounting options.
The man-machine interface is simple, clear and easy to operate. The built-in reliable interlocking device ensures that the isolating switch can be operated without electricity in case of manual emergency operation.
The motorized operation scheme is flexible and diversified, with on-site App operation, local controller operation and background remote operation.
The intelligent energy management system helps users improve management efficiency and achieve the energy-saving and emission reduction target.
